(per pair)

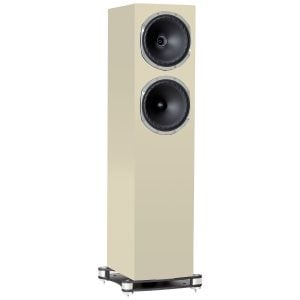

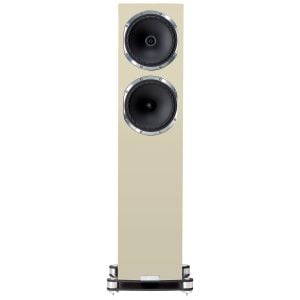

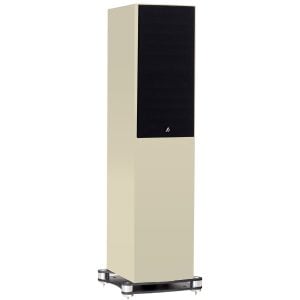

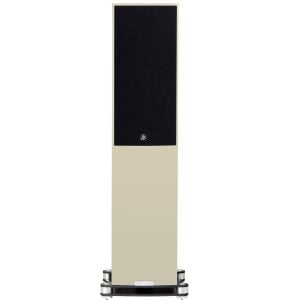

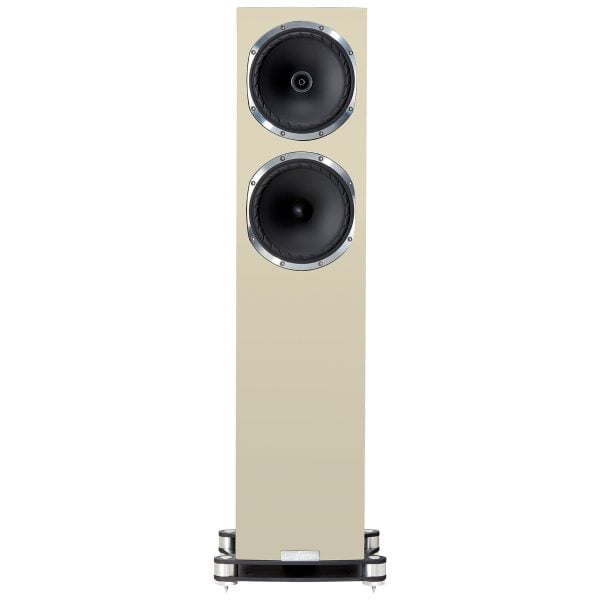

Available exclusively to the UK the custom colour SP edition uses the premium 200mm (8″) IsoFlare™ driver and 200mm (8″) bass and mid driver from the F702, featuring rigid multi-fibre cones and FyneFlute™ roll surrounds. As a Special Production model, the F502SP can also be specified in a bespoke RAL Classic colour finish, allowing each pair to be tailored to its environment in both appearance and performance.
The IsoFlare’s 25mm magnesium compression tweeter features a unique HF wave guide pole piece that delivers an exceptionally even, full-range frequency response and outstanding musical imaging. The F502SP also benefits from the F700 Series’ advanced crossover components and aluminium sandwich plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet.
Available exclusively to the UK.
| System Type | 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system |
| Recommended amplifier power (Watt RMS) | 30- 200 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 30Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround. |
| Crossover frequency | 250Hz & 1.7kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. |
| Dimensions - HxWxD | 1111 x 338 x 380mm (43.7 x 13.3 x 15.0”) |
| Net Weight - Each | 30.4kg (67.0lb) |
| Finishes | RAL Classic Colour System |
| S-Trax Position (from cabinet front edge) | 61mm (2.4") |
| SuperTrax Position (from cabinet front edge) | 37mm (1.5") |
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All product weights displayed are net weight. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. | |
